Power, precision & performance for high-volume apparel factories.
Request PricingUpdate software or charge mobile devices via the built-in USB port—efficient and versatile.
Proprietary electronic system ensures durability, faster diagnostics, and extended warranty coverage.
Enjoy precision sewing with LED-lit visibility and smart needle positioning controls built in.
| Model | S1T-M (Direct Drive Lockstitch) |
|---|---|
| Needle Type | DBX1 #11 – #18 |
| Stitch Length | 5 mm max |
| Presser Foot Height | 5 mm |
| Applicable Fabrics | Light to Medium materials (shirts, suits, jeans) |
| Max Speed | 5000 stitches/min |
| Power | 220V / 250W servo motor |
| Features | USB port, LED light, auto foot lift (optional) |
| Electricity Use | <1 kWh/day (energy efficient design) |
| Package Size | 63 × 25 × 56 cm |

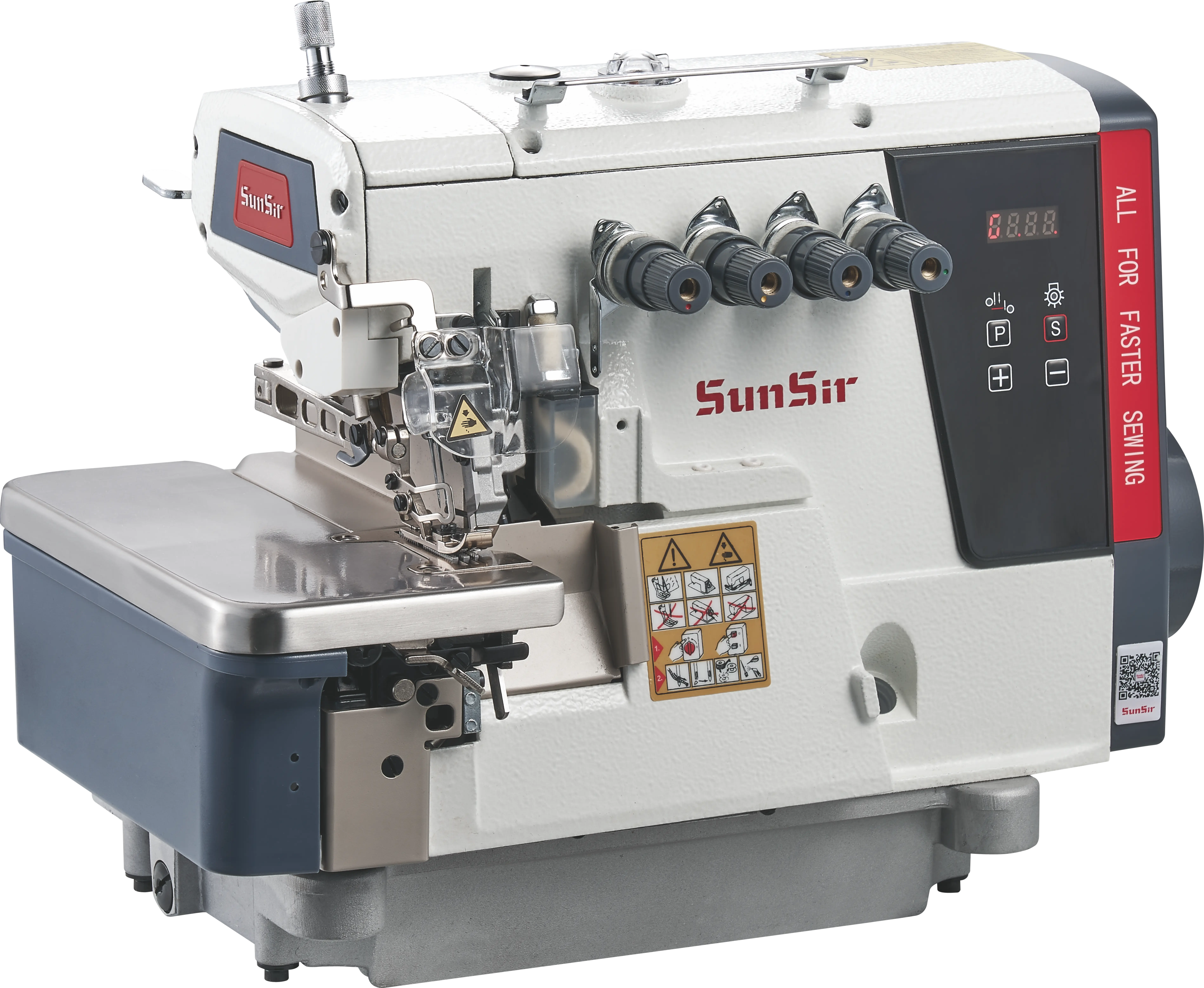

A powerful, high-speed direct drive overlock series designed to master everything from delicate knits to heavy-duty seams.
| Model Variants | R1C-3-02/233, R1C-4-54/433, R1C-5-03/233, R1C-5-03/333, R1C-5-04/435, R1C-6-03/333 |
|---|---|
| Max Speed | 6,500 – 7,000 stitches/min |
| Needle Type | DCX27 #11–#21 |
| Thread Count | 1 – 3 threads |
| Needle Count | 3 – 6 needles |
| Stitch Length | 3.8 mm fixed (some models adjustable) |
| Overedge Width | 4 – 6 mm |
| Differential Feed Ratio | 0.7 – 2.0 (up to 1.5 for some) |
| Presser Foot Lift | 5 – 7 mm |
| Voltage & Power | 220V, integrated direct drive motor |
| Carton Size | 55 × 35 × 56.5 cm |

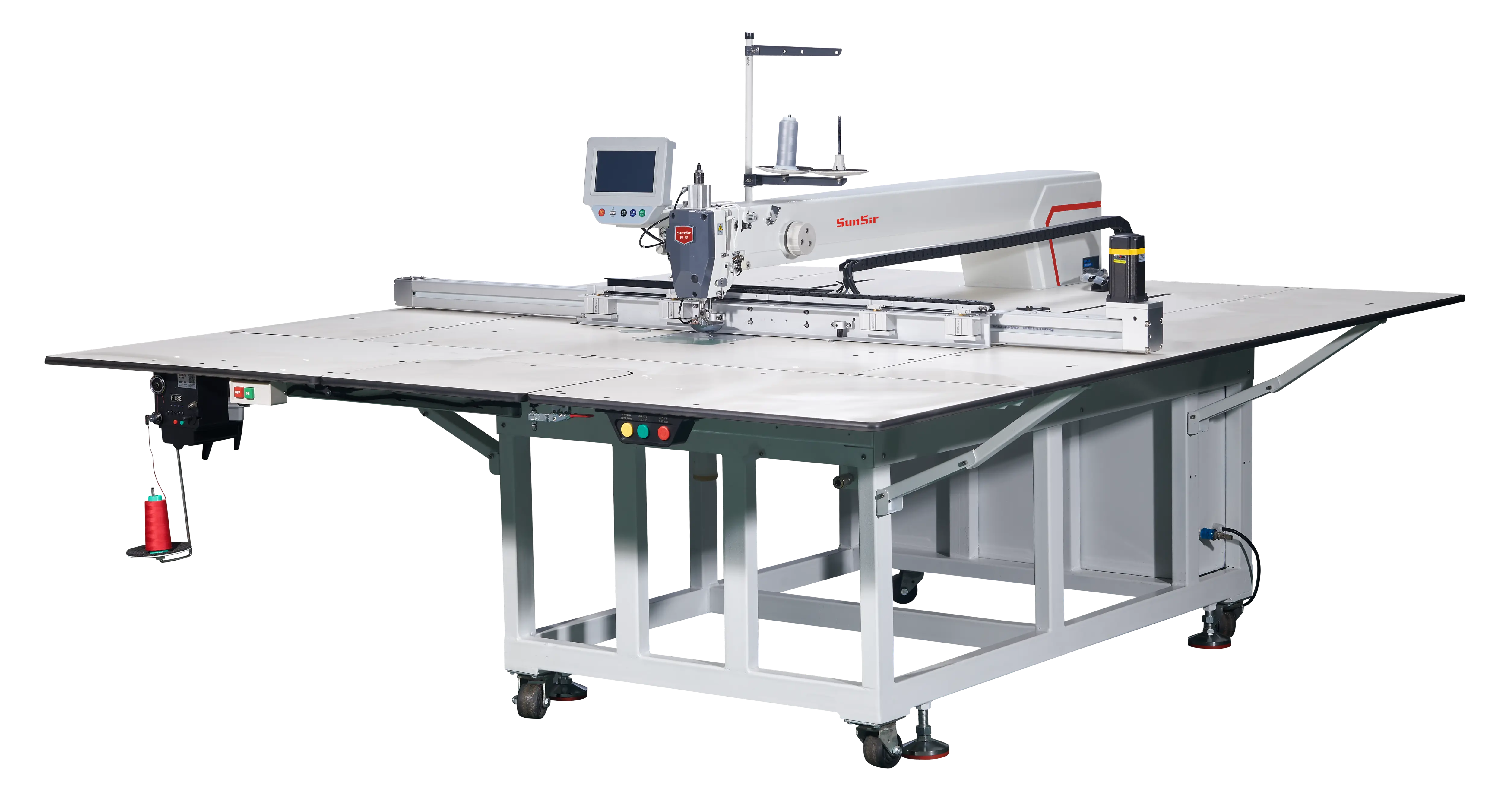

Auto-smart template machine designed for precision sewing on down feather, cotton, suits, shirts, leather, luggage, shoes, and more.
| Sewing Area | X: ±1300mm, Y: ±500mm |
|---|---|
| Needle Gauge | 0.5mm – 12.7mm |
| Speed | 3000 stitches/min |
| Needle Type | DBX1 (7#–23#) |
| Program Input | USB line or disk |
| Memory Programs | 999 |
| Motor | 750W direct-drive servo motor |
| Middle Presser Foot Device | Independent motor drive |
| Middle Presser Foot Height | > 17mm |
| Outsider Presser Foot Height | 20mm |
| Pattern Reading Mode | RFID radio frequency |
| Air Pressure | Max 0.5MPa |
| Power Spec | 220V / 1200W |
| Machine Weight | 580kg (excluding box) |
